The dimensional accuracy of disc springs directly determines their preload performance, fatigue life, and the operational stability of the equipment in which they are used. It is therefore a critical factor in disc spring quality control.

During disc spring procurement, incoming inspection, and quality control, many companies encounter problems such as inaccurate measurements, assembly failures, and insufficient service life due to improper inspection methods.

As a professional manufacturer specializing in the R&D, production, and inspection of high-precision disc springs, Raleigh Spring has been deeply involved in the spring industry for many years. Supported by a professional technical team and a standardized quality control system, we strictly follow the GB/T 1972 standard and provide practical guidance on professional disc spring dimensional inspection methods, helping customers precisely control the critical dimensions of disc springs, including thickness, inner diameter, and outer diameter.

1. Common Mistakes in Disc Spring Thickness Measurement | Raleigh Spring's Professional Solution

In conventional disc spring quality inspection, one of the most common mistakes made by purchasing and quality control personnel is measuring disc spring thickness directly with a standard outside micrometer.

Based on the inspection experience gained from thousands of production batches, the Raleigh Spring technical team has confirmed that this method can produce significant measurement errors and is not suitable for the quality acceptance of high-precision disc springs.

After disc springs undergo multiple precision manufacturing processes, including stamping, heat treatment, and flattening/setting, slight process deformation may occur on their upper and lower conical surfaces. Small convexities or depressions may develop, meaning that the surfaces cannot remain perfectly parallel.

When a conventional micrometer with flat measuring faces is used, the measuring faces may contact the deformed areas of the curved surface. As a result, the measured value includes the additional height caused by surface deformation, making the measured thickness greater than the actual base material thickness.

This can easily lead to incorrect inspection results and inaccurate quality judgments.

To solve this common industry inspection problem, Raleigh Spring uses dedicated disc spring thickness micrometers as the standard inspection equipment.

These instruments are equipped with specialized pointed measuring tips, specifically optimized for the conical structure of disc springs. The pointed measuring tips effectively avoid interference caused by surface deformation and directly measure the thinnest base-material section of the disc spring.

This allows the actual material thickness to be accurately determined, ensuring reliable and meaningful inspection data and preventing thickness deviations from the source.

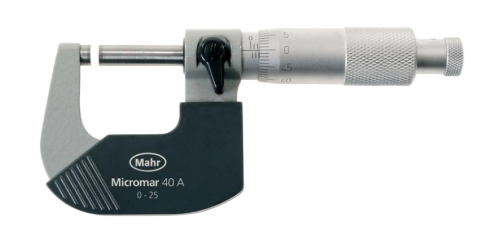

Figure 1: Micrometer for Disc Spring Thickness Measurement

2. Precision Measurement of Disc Spring Inner and Outer Diameters | Raleigh Spring's Graded Quality Inspection System

The inner and outer diameters of a disc spring are critical dimensions for ensuring proper assembly and compatibility.

Accurate tolerance control directly affects preload accuracy and the stability of the final assembly. To ensure dimensional consistency, Raleigh Spring has established a standardized and graded inspection process for inner and outer diameters, suitable for both precision sampling inspection and high-volume production.

Figure 2: Disc Spring Outer Diameter Measurement
Figure 3: Disc Spring Inner Diameter Measurement

For precision inspection of individual parts, Raleigh Spring uses professional vernier calipers with an accuracy of 0.02 mm for multi-point measurements.

We strictly follow our dimensional inspection criteria:

The maximum measured value is taken as the reference for the disc spring outer diameter.

The minimum measured value is taken as the reference for the disc spring inner diameter.

This measurement method effectively minimizes errors caused by slight product deformation and ensures accurate dimensional evaluation of individual disc springs.

For large-volume standardized disc spring production orders, Raleigh Spring adopts a dedicated Go/No-Go Gauge inspection process.

Through rapid Go/No-Go Gauge screening, we can efficiently determine whether product dimensions fall within the specified tolerance range and quickly remove non-conforming parts.

This process not only ensures dimensional consistency across large production batches but also significantly improves outgoing inspection efficiency, making it particularly suitable for high-volume applications in industries such as wind power, hydraulics, heavy machinery, and valves.

3. Strict Quality Inspection Standards | Dual Quality Assurance Based on International Standards and Internal Controls

High-quality disc springs require a comprehensive and systematic inspection standard.

Rather than relying on conventional and relatively basic inspection practices, Raleigh Spring has established a full-process quality control system covering both semi-finished processing and finished-product inspection.

Our inspection standards are based on a dual-control approach, with internal requirements that are often more stringent than general industry standards.

For finished-product inspection, Raleigh Spring strictly follows the GB/T 1972 national standard for disc springs while also fully complying with the dimensional tolerance requirements specified in customers' drawings.

For semi-finished products and intermediate manufacturing processes, we implement internal process specifications developed by our technical team.

Compared with general industry requirements, our internal standards provide enhanced control over:

Dimensional tolerances

Deformation control

Inspection accuracy

Process consistency

Through these stricter quality control requirements, Raleigh Spring effectively minimizes batch-to-batch dimensional deviations and performance variations.

With years of experience in customized disc spring manufacturing and application across different operating conditions, Raleigh Spring continuously optimizes inspection procedures and production parameters.

As a result, every disc spring leaving our facility is designed to provide:

Precise dimensions

High dimensional consistency

Excellent fatigue resistance

Stable performance

These characteristics allow our disc springs to perform reliably under demanding operating conditions, including high temperature, high pressure, high impact, and high salt-spray environments.

4. Why Choose Raleigh Spring for High-Precision Disc Springs?

As a professional disc spring manufacturer, Raleigh Spring integrates R&D, precision manufacturing, strict quality inspection, and technical support into a complete production and service system.

Unlike conventional manufacturers that rely on relatively basic production and inspection processes, Raleigh Spring applies refined process control throughout the entire manufacturing chain.

From raw material selection, precision stamping and forming, and advanced heat treatment to dedicated dimensional inspection and final inspection, every manufacturing stage is carefully controlled.

Raleigh Spring can supply disc springs manufactured according to major standards, including:

DIN 2093

DIN EN 16983

GB/T 1972-2023

In addition to standard disc springs, we also support customized non-standard solutions, including:

Large-diameter disc springs

Ultra-thin disc springs

High-temperature-resistant disc springs

Corrosion-resistant disc springs

Special-alloy disc springs

Our disc springs are widely used in numerous industries, including:

Automotive | Elevators | Power Generation | Braking Systems | Wind Power | Hydraulic Valves | Construction Machinery | Rail Transportation | Nuclear & Petrochemical | Mold Manufacturing

If you are looking for high-precision, highly consistent disc springs, or need technical support with disc spring dimensional inspection, product selection, application matching, or operating-condition optimization, please contact the Raleigh Spring technical team.

We are committed to providing customers with one-stop disc spring customization and technical solutions, from product selection and engineering support to precision manufacturing and quality inspection.
